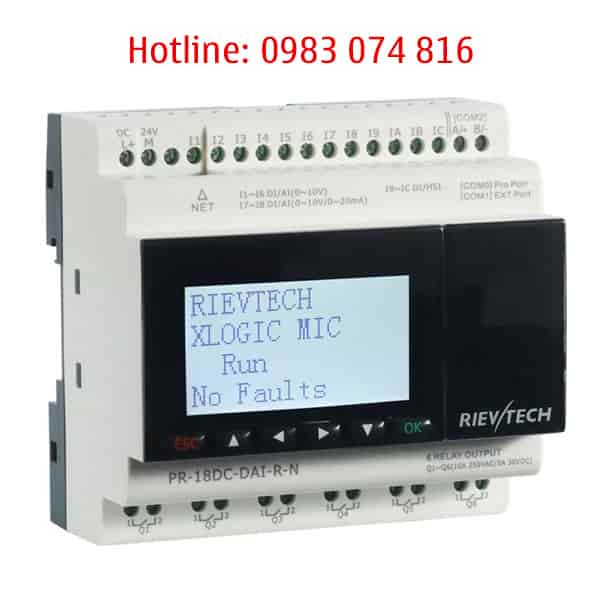

Bộ lập trình PR-18DC-DAI-R-N

Danh mục: PLC Thẻ: Bộ lập trình, Bộ lập trình PR-18DC-DAI-R-N, đại lý PR-18DC-DAI-R-N, đại lý rievtech, nhà phân phối PR-18DC-DAI-R-N, nhà phân phối rievtech, plc Rievtech, PR-18DC-DAI-R-N, Rievtech PR-18DC-DAI-R-N, rievtech việt nam

Rievtech

Bộ lập trình PR-18DC-DAI-R-N

Thông số kỹ thuật bộ plc Rievtech PR-18DC-DAI-R-N

Đặc điểm cụ thể
Input	I1–I6 : 6DI/AI (0–10V signal）+ I7–I8 : 2DI/AI(0–10V/0-20mA signal） + I9–IC: 4DI/HSI
Output	Q1–Q6 ( RELAY 10A 250VAC /5A 30VDC)
Supply	DC 24V
Weight	Approx. 380g
Dimensions	Without packing: 95mm90mm61mm With packing: 107mm96mm73mm
Expansion	YES(16PCS in max)

Đặc điểm xử lý
Program size function blocks (FBD)	1024 function blocks
Memory size function blocks (FBD)	64K
LCD display	4 lines of 16 characters and configurable backlighting
Programming method	Function blocks
Program memory	Flash EEPROM
Data Logging	4G TF Cord
Back-up time in the event of power failure	Program and settings in the controller: 10 years Program and settings in the plug-in memory: 10 years Data memory: 10 years
Cycle time	FBD: typ. 0.6ms ~ 8.0ms
Response time	Input acquisition time: + 1 to 2 cycle times
Clock data retention	25°C typ. 20 days
Clock Drift	typ. ± 2 s/day
Timer block accuracy	time base :s(Second) Resolution : +10 ms time base :m(Minute) Resolution: +1 s time base :h(Hour) Resolution: +1 min
Start up time on power up	Typ. 4s
đại lý PR-18DC-DAI-R-N \| nhà phân phối PR-18DC-DAI-R-N
Nguồn cấp
Nominal voltage	DC 24V
Operating limits	DC 20.4-28.8V
Supply frequency range	NO
Max. absorbed power	1.2 W (24V dc) ; 1.3 W (28.8V dc)
	đại lý rievtech \| nhà phân phối rievtech \| rievtech việt nam
Đầu ra PLC
Input voltage	DC0-28.8V
Input current	0.4mA ; 10.8V dc 0.5mA ; 12.0 V dc 1.2mA ; 24 V dc 1.5mA ; 28.8 V dc
Resolution Ratio (Analog Input)	0.01V (0~10v) 0.02mA (0~02mA)
Accuracy at 25 °C (Analog Input)	±0.02V ±0.05mA
Logic 1 voltage threshold	> 8 VDC;>0.3mA
Logic 0 voltage threshold	< 5 VDC;<0.1mA
Input Response Time	Delay time at 0 to 1： I1-I8:Typ. 2.5 ms I9-IC:Typ. 1.5 ms Delay time at 1 to 0： Typ. 1.5 ms
Maximum counting frequency	Typ.：4 HZ; HSI: 60kHZ(I9–IC)
Sensor type	Contact or 3-wire PNP
Input type	Resistive
Outputs
Rated voltage	AC 250 V / DC 30 V
Rated current	AC 250 V: 10 A DC 30 V ; 5A
Electrical durability Expectancy	10⁵Operations at Rated Resistive Load
Mechanical life	10⁷ Operations at No Load condition
Response time	Operate Time : 15 mSec. Max. Release Time : 10 mSec. Max.
Frequency (Hz)	resistive load : 2 Hz inductive load : 0.5 Hz
Communication ports parameters:
COM0_TTL port	COM0 : optional RS232/RS485 (via accessories :RS232 CABLE/PRO-RS485) Band Rate：4800；9600；19200；38400；57600；115200 Communication Protocol：MODBUS RTU；MODBUS ASCII
Ext RS485	COM1: optional RS485 (Via PR-RS485 expansion module) Band Rate：4800；9600；19200 Communication Protocol：MODBUS RTU；MODBUS ASCII
Built-in RS485	COM2: Built-in RS485 Band Rate：4800；9600；19200；38400；57600；115200 Communication Protocol：MODBUS RTU；MODBUS ASCII
Ethernet port:	Built-In(10M/100M), 1.Can be used as program or communication 2.Can be used as modbus master or slave Communication Protocol：MODBUS TCP RTU ；MODBUS RTU
Monitoring webserver page	Yes
Program language	FBD & Ladder
Xlogic<—>Xlogic(by Ethernet)	1 xlogic works as tcp server can connect with 8 tcp client xlogics or other tcp devices.
Xlogic<—>Ethernet/Internet:	1 xlogic works as TCP clients can connect with 8 different tcp servers separately in maximum
